What is reflection?

"The ability of software to expose its internal structure."

Static reflection: the compiler exposes structure at compile time

• Inspection of types, members, functions, and annotations
• Automatic C++ code generation at compile time
• Expressive compile-time metaprogramming without macros

P2996 — one of the largest proposals in C++ history since the introduction of templates.

Reflection vs Introspection

• Introspection = reading (observe only)
• Reflection = reading + acting (observe and manipulate).

➜ Reflection is the broader capability: introspection + the ability to act on what you discovered (code injection)

As we will see, C++ P2996 is reflection not introspection.

Why should you care?

One C++ description → everything:

• Automatic serialization / deserialization
• Generic struct printing / debugging
• Compile-time generation of types via splicers
• Doc generation (md, html...)
• Annotations (P3394, paired with reflection) let you attach compile-time metadata to declarations and read it back via reflection, supporting things like validation rules or serialization hints.
• ...

The two operators in one picture

constexpr std::meta::info info = ^^Circle;            // reflect-on a type

typename [: info :] c = {.name = "c", .radius = 1.0}; // splice it back into code

// also works on members, expressions, namespaces, templates...

^^ aka - cat-ears operator

• Everything that crosses the boundary is consteval / constexpr
• ^^T lifts the name T into a constexpr value (std::meta::info)
• [: info :] drops a std::meta::info value back into a type, expression, or member

template for (Expansion statements)

To loop over a collection at compile time

template for (constexpr auto e : std::meta::enumerators_of(^^MyEnum)) {

    // Need constexpr to use [:e:]
    ...

}

Why not earlier?

• Not yet ready before (constexpr/constval/template for...)?

Why not earlier? — C++ libraries pre-P2996

Why not earlier? — every other language has this

Language	Runtime	Compile-time	Idiom
Python	deep		inspect, getattr, decorators
Java	native	processors	java.lang.reflect
JavaScript	Proxy		Reflect, Object.*
Rust	minimal	proc-macros	derive, serde, bevy_reflect
C++26	build manually	P2996	^^T, [: r :], consteval

C++ was the only major language without first-class reflection — until now.

Supported compilers

Compiler	Reflexion C++26	template for (expansion statement)
GCC 16.1+	Almost done
Clang (Bloomberg)	Almost done	(-freflection-latest)
Clang mainline	Partial	In progress
NVC++	Partial
MSVC
EDG	Partial

A running example

struct Point {
    int    x;
    int    y;
    double z;
    double norm() const { return ...; }
    Point scale(double) const { return ...; }
};

Enumerate Point's fields

constexpr auto ctx = std::meta::access_context::current();

constexpr auto fields = std::define_static_array(std::meta::nonstatic_data_members_of(^^Point, ctx));

template for (constexpr auto f : fields) { // expansion statement
    std::println(
        "  {} : {}",
        std::meta::identifier_of(f),
        std::meta::display_string_of(std::meta::type_of(f))
    );
}

Output:

  x : int
  y : int
  z : double

No macros, no inheritance, no registration, non intrusif. Just the type.

Enumerate Point's methods

constexpr auto members = std::define_static_array(std::meta::members_of(^^Point, ctx));

template for (constexpr auto m : members) { // expansion statement
    if constexpr (is_exportable_member_function(m)) {
        std::print("  {} {}(", std::meta::display_string_of(std::meta::return_type_of(m)),
                    std::meta::identifier_of(m));

        bool first = true;
        template for (constexpr auto param: std::define_static_array(std::meta::parameters_of(m))) {
            if (!first) {std::print(", ");}
            first = false;
            std::print("{}", std::meta::display_string_of(std::meta::type_of(param)));
        }
        std::println(")");
    }
}

Output:

  double norm()
  Point scale(double)

Simple JSON-ish serialization

template <typename T>
std::string to_json(const T& obj) {
    std::string out = "{";
    bool first = true;
    template for (constexpr auto m : std::define_static_array(
                      std::meta::nonstatic_data_members_of(^^T))) {
        if (!first) out += ",";
        first = false;
        out += '"';
        out += std::meta::identifier_of(m);
        out += "\":";
        out += serialize_value(obj.[:m:]);  // user per-type value formatter
    }
    out += "}";
    return out;
}

Serialization example

enum class Color { Red, Green, Blue };

struct Address {
    std::string street;
    int         number;
};

struct Person {
    std::string              name;
    int                      age;
    bool                     active;
    Color                    favorite_color;
    Address                  home;
    std::vector<std::string> tags;
};

int main() {
    Person p{
        .name           = "Alice",
        .age            = 30,
        .active         = true,
        .favorite_color = Color::Green,
        .home           = {"Rue Pasteur", 42},
        .tags           = {"admin", "ops"},
    };

    std::println("{}", to_json(p));
}

Serialization result

{
    "name": "Alice",
    "age": 30,
    "active": true,
    "favorite_color": "Green",
    "home": {
        "street": "Rue Pasteur",
        "number": 42
    },
    "tags": [
        "admin",
        "ops"
    ]
}

Aggregate example

Use std::meta::define_aggregate:
(previsouly called std::meta::define_class in draft)

#include <meta>

struct Synthesized;  // incomplete — to be defined

consteval {
    std::meta::define_aggregate(^^Synthesized, {
        std::meta::data_member_spec(^^int,    {.name = "id"}),
        std::meta::data_member_spec(^^double, {.name = "value"}),
    });
}

// Synthesized is now:
struct Synthesized {int id; double value;};

Etonish, nein ? (cf, "La Minute nécessaire de monsieur Cyclopède")

Better Etonish!

constexpr auto v = [: parse_json(json_data) :];

Means: "Run parse_json(json_data) at compile time, obtain a reflected representation of some C++ entity or expression, and substitute the corresponding C++ code here."

➜ we cannot inject methods into it with the current C++26 facility

The example of Rosetta

• A C++ introspection & automatic language binding.
• Non intrusif
• Introspection at runtime
• Hand written registration à la pybind11

https://github.com/xaliphostes/rosetta

Rosetta — before C++26

For each class, hand-write the registration:

rosetta::Class<Shape>("Shape")
    .field("name", &Shape::name).doc("display name")
    .method("describe", &Shape::describe).doc("greeting")
    .method("area",     &Shape::area)
    .static_method("next_id", &Shape::next_id);

rosetta::Class<Circle>("Circle")
    .base<Shape>()
    .field("radius", &Circle::radius)
        .doc("radius in meters")
        .range(0.0, 1e6);

// ... repeat for Rectangle, every other type, every project ...

Real numbers from our internal lib: ~6000 lines of glue.

Rosetta — with C++26

Use C++ annotations (P3394) for doc, readonly, numeric range, alias, displayed-name...

rosetta::register_reflected<Shape>();
rosetta::register_reflected<Circle>();
rosetta::register_reflected<Rectangle>();

That's it:

• Same registry
• Simplified downstream generators

~100 lines of register_reflected machinery — once, in the library — and you never touch it again!

Rosetta before and after C++26 (# lines of code)

Applications — Auto language bindings

One C++ description, N hosts (visitors):

The alternative is N hand-maintained binding files that drift as the C++ API evolves.

Applications — Validation · Docs · Persistence · Live

• Validation — range, regex, not-null, cross-field invariants (from annotations).
• Documentation — Markdown / HTML / OpenAPI / Sphinx from doc("…").
• Live scripting / REPL (read-eval-print loop) — every method auto-callable from the console.
• Testing — property-based, fuzzing, snapshot tests, binding-coverage.
• ...

Applications — Serialization · GUI · REST

Serialize: JSON / XML / YAML / TOML / Protobuf / ... — no schema needed.

GUI generation:

• Qt property editors (ObjectInspector<Circle> for free)
• QML data binding, web forms, Blueprint-style node editors
• ImGui debug panels — sliders, color pickers, drag-floats per field
• ...

REST / RPC: each method → endpoint, each parameter → JSON field.

Annotation is the leverage

One [[=doc{...}, =range{...}]] double radius; is simultaneously:

• A Python attribute
• A JavaScript getter/setter
• A REST endpoint
• A JSON-serializable element
• A Qt property in the inspector
• A documented entry in the reference
• A range-validated database column
• ...

Every line of registration unlocks features across multiple subsystems at once.

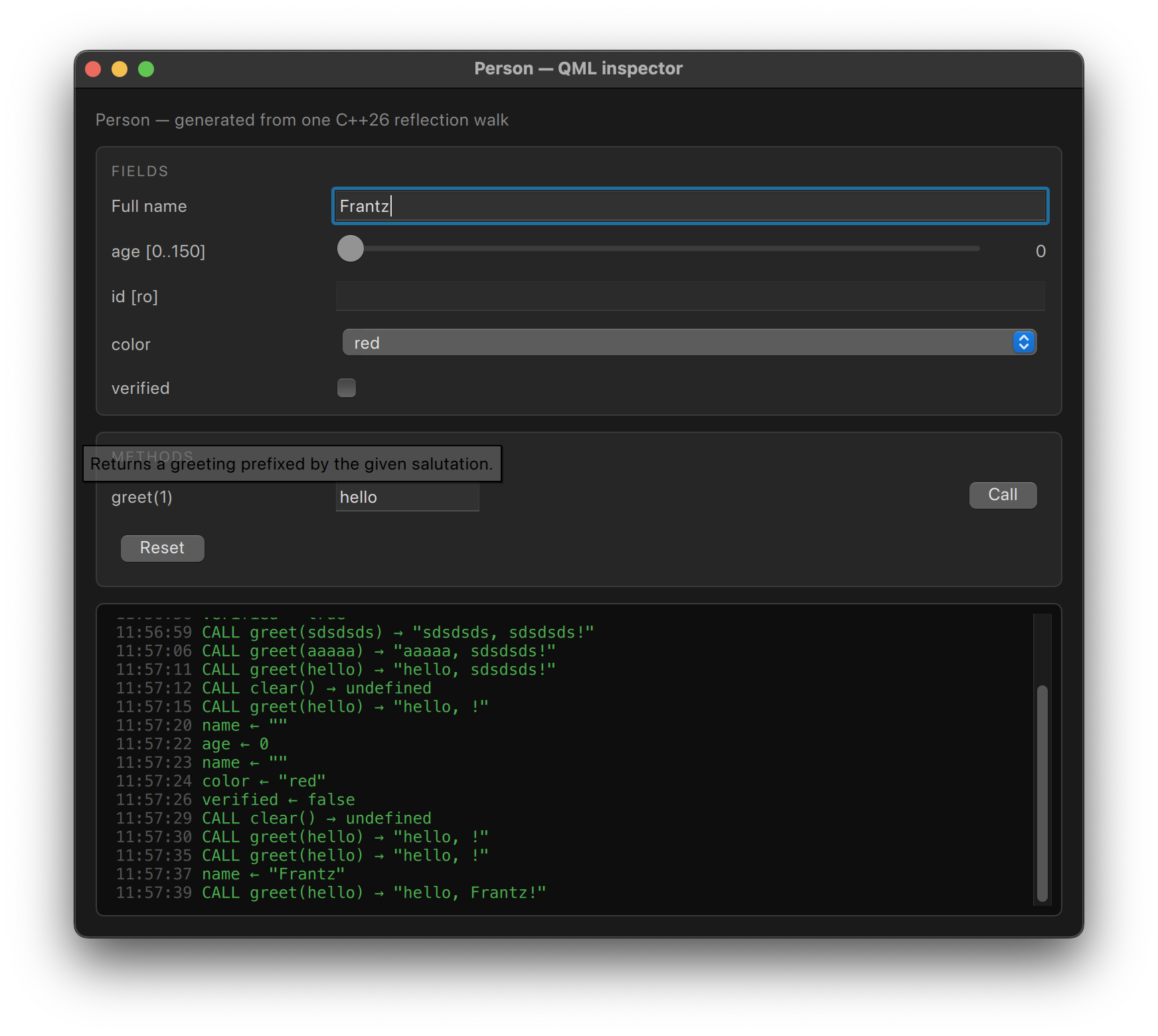

QML example

using namespace rosetta;

struct Person {
    [[ = doc{"the person's display name"} ]]
    std::string name;

    [[ = doc{"age in whole years"},
       = range{0.0, 150.0},
       = widget::slider ]]
    int age = 0;

    [[ = doc{"server-assigned identifier"},
       = readonly{} ]]
    std::string id;

    [[ = rosetta::doc{"favourite colour"},
       = rosetta::combobox{{"red", "green", "blue", "yellow"}} ]]
    std::string color = "red";

    Person() = default;
    Person(std::string n, int a, std::string i): name(std::move(n)), age(a), id(std::move(i)) {}

    [[ = doc{"Returns a greeting prefixed by the given salutation."} ]]
    std::string greet(const std::string &salutation) const {
        return salutation + ", " + name + "!";
    }

    void clear() {
        name.clear();
        age = 0;
    }
};

Person person;
rosetta::ReflectedObject reflected;
rosetta::bind_qml<Person>(&reflected, person);

QQmlApplicationEngine engine;
engine.rootContext()->setContextProperty("inspector", &reflected);

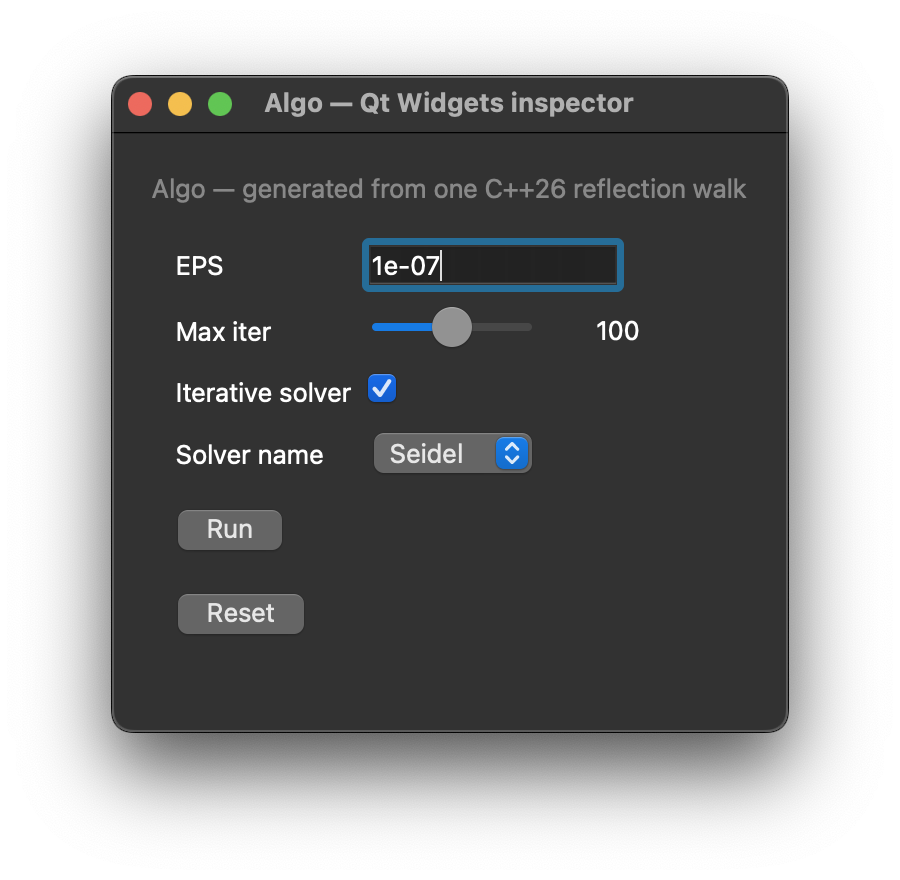

Qt example

class Algo {
public:

    [[ = rosetta::doc{"Tolerence of the solver"},
       = rosetta::range{1e-10, 1e-6},
       = rosetta::widget::textfield, = rosetta::label{"EPS"} ]]
    double eps{1e-7};

    [[ = rosetta::doc{"Set the max iterations"},
       = rosetta::range{0, 200},
       = rosetta::widget::slider, = rosetta::label{"Max iter"} ]]
    int maxIter{100};

    [[ = rosetta::doc{"Tell if the solver must be iterative"},
       = rosetta::widget::checkbox,
       = rosetta::label{"Iterative solver"} ]]
    bool iterative{true};

    [[ = rosetta::doc{"Solver name"},
       = rosetta::combobox{{"Seidel", "Jacobi", "gmres", "cgnr", "direct"}},
       = rosetta::label{"Solver name"} ]]
    std::string solverName{"Seidel"};

    [[ = rosetta::doc{"Run the solver and return the convergence"},
       = rosetta::button{"Run"} ]]
    double run() {return 1e-8;}

    [[ = rosetta::doc{"Reset the solver"},
       = rosetta::button{"Reset"} ]]
    void reset() {}
};

Algo algo;
QWidget *inspector = rosetta::build_inspector<Algo>(algo, "Algo");

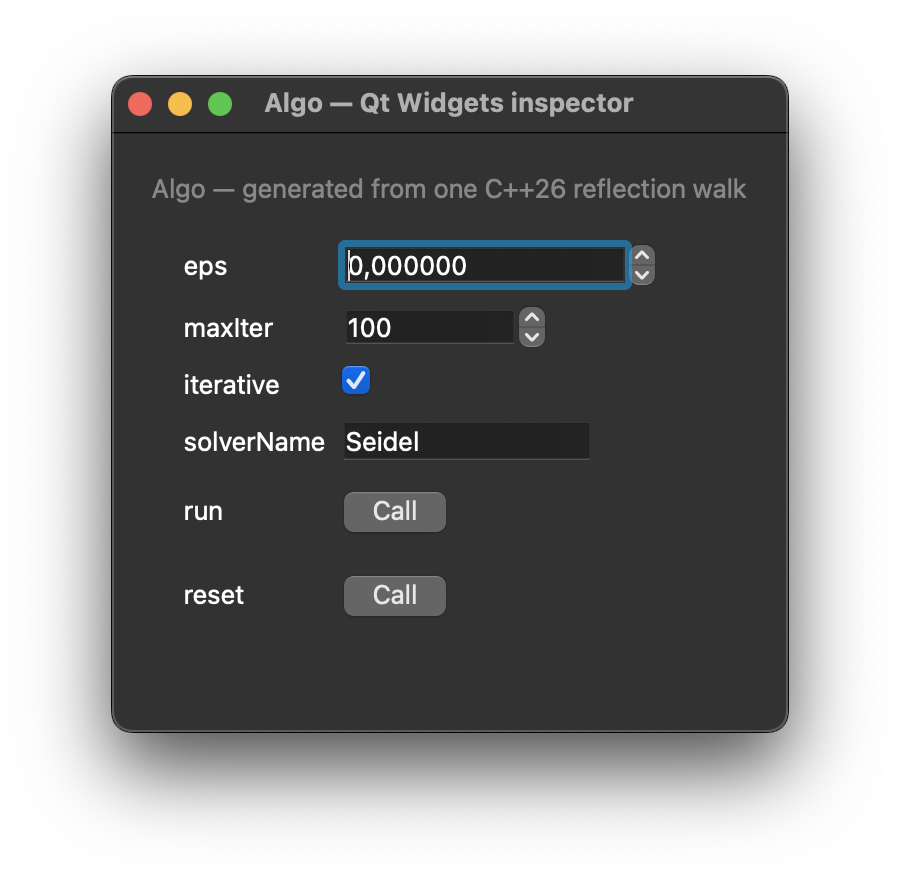

Qt example

Doc generation example

#include <rosetta/docgen.h>
#include "Algo.h"

const auto md = rosetta::generate_markdown<Algo>();

Algo (markdown preview)

Fields

Methods

run() → double

Run the solver and return the convergence

reset() → void

Reset the solver

Playing with C++26 to recreate the Qt moc

Qt's moc is a separate code generator. It parses headers, emits .moc
files, links them in. It's been a Qt fixture for 25 years.

C++26 reflection makes it… optional.

using namespace rosetta;

class Thermostat {
public:
    [[ = moc::signal ]]
    moc::Signal<double> temperatureChanged;

    [[ = moc::property{"temperature", "temperatureChanged"} ]]
    double m_temperature = 20.0;
};

No .moc file. No build step. Just a header.

Thermostat th;
Display    d;

moc::connect<"temperatureChanged", "showTemperature">(th, d);

moc::set<"temperature">(th, 19.8); // fires temperatureChanged(19.8)
moc::set<"temperature">(th, 19.8); // equality-gated, silent

Three failure modes, all at compile time:

• typo'd signal name → static_assert: "no [[=signal]]-tagged member"
• typo'd slot name → static_assert: "no [[=slot]]-tagged member"
• mismatched types → template error at the lambda body

References

• Reflection proposal
• Annotations for reflection
• All infos about <meta>

Questions?

Example Python binding

template <typename T> void bind(py::module_ &m, const char *py_name) {
    py::class_<T> cls(m, py_name);
    cls.def(py::init<>());

    // Fields
    template for (constexpr auto fld : std::define_static_array(std::meta::nonstatic_data_members_of(^^T, ctx))) {
        if constexpr (ro) {
            // readonly annotation -> Python read-only property
            cls.def_property_readonly(name, [](const T &self) -> MemberT {
                return self.[:fld:]; }, docstr);
            }
    }
    // Methods
    template for (constexpr auto fn : std::define_static_array(std::meta::members_of(^^T, ctx))) {
        if constexpr (is_exportable_member_function(fn)) {
            constexpr auto name  = std::define_static_string(std::meta::identifier_of(fn));
            constexpr auto m_doc = std::meta::annotation_of_type<doc>(fn);
            constexpr const char *mdoc = m_doc.has_value() ? m_doc->text : "";

            if constexpr (std::meta::is_static_member(fn)) {
                cls.def_static(name, &[:fn:], mdoc);
            } else {
                cls.def(name, &[:fn:], mdoc);
            }
        }
    }
}

Calling a method

struct Vector3 {
    double x, y, z;
    double length() const { return x*x + y*y + z*z; }
    void   scale(double k) { x *= k; y *= k; z *= k; }
};

constexpr auto ctx = std::meta::access_context::current();

// call a 0-arg method chosen by runtime name
double call_by_name(const Vector3 &v, std::string_view name) {
    double result = 0;
    // unrolls the member list at compile time
    template for (constexpr auto m : std::define_static_array(std::meta::members_of(^^Vector3, ctx)))
    {
        if constexpr (std::meta::is_function(m) && !std::meta::is_special_member_function(m))
        {
            if (std::meta::identifier_of(m) == name && std::meta::parameters_of(m).empty())
            {
                result = (v.[:m:])(); // :-)
            }
        }
    }
    return result;
}

int main() {
    Vector3 v{3.0, 4.0, 0.0};
    std::println("{}", call_by_name(v, "length"));  // -> 25
}
